| 公 称 型 号 |
外形尺寸 | LM 滑块尺寸 | H3 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 高H | 宽W | 长L | B | C | M×L | L1 | T | N | E | 油 嘴 | |||

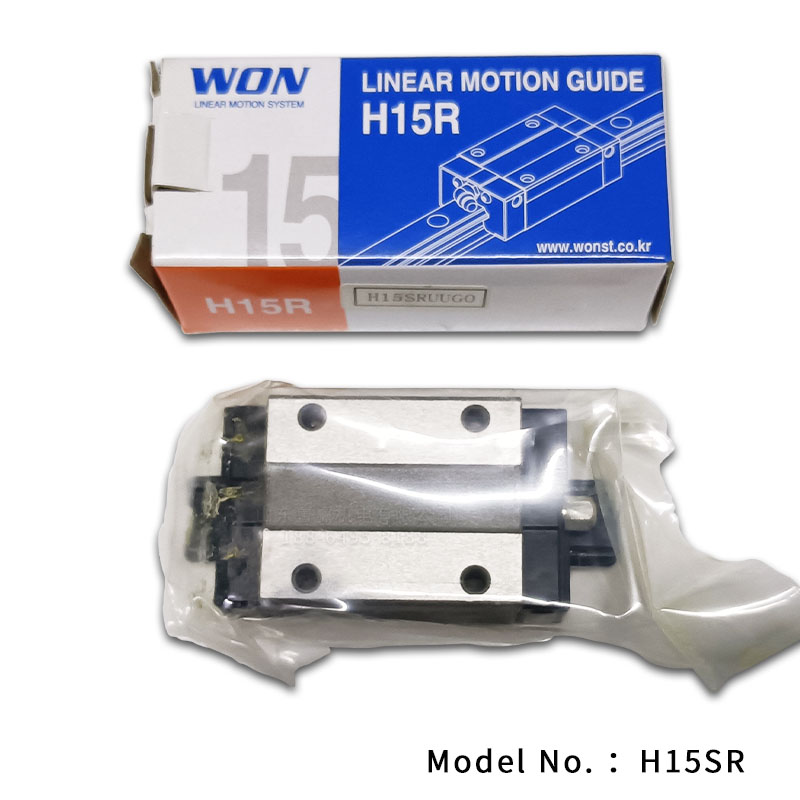

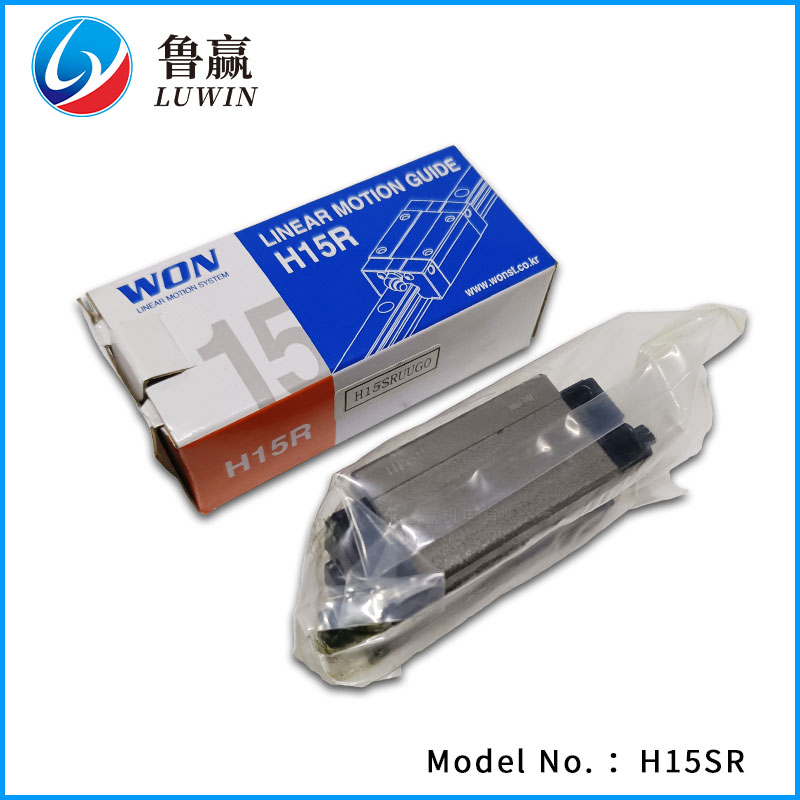

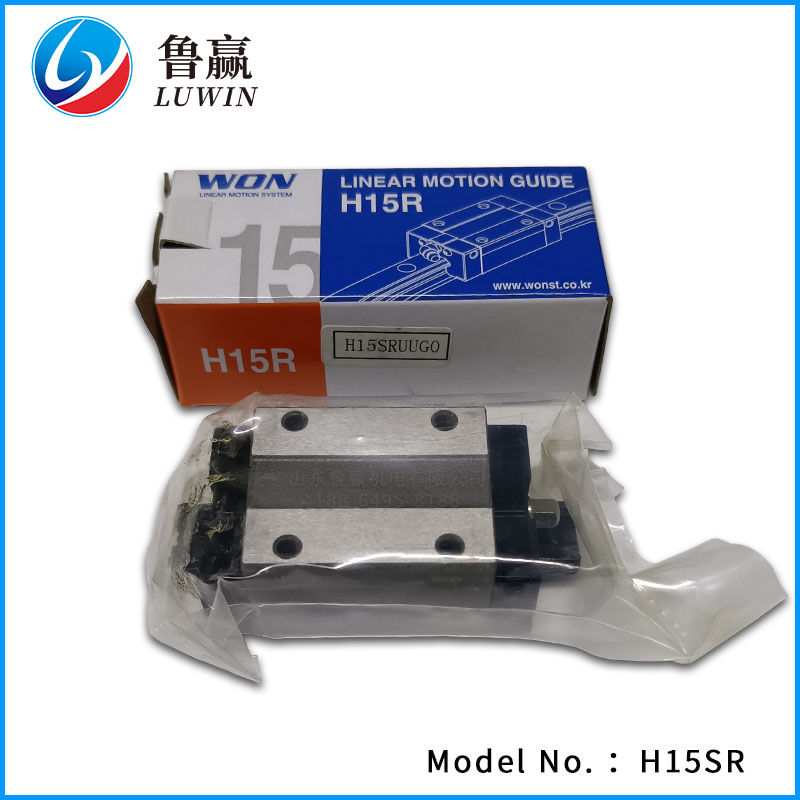

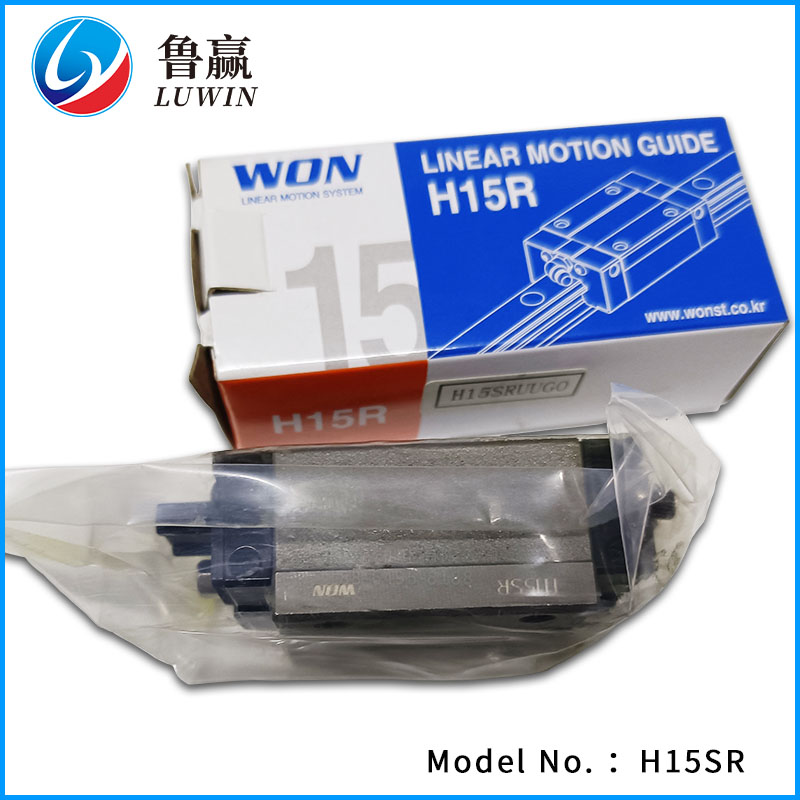

| H15SR | 28 | 34 | 57 | 26 | 26 | M4×5 | 40.8 | 6 | 10 | 6 | A-M4 | 4.7 | |
| H15SRL | 28 | 34 | 65.3 | 26 | 26 | M4×5 | 49.1 | 6 | 10 | 6 | A-M4 | 4.7 | |

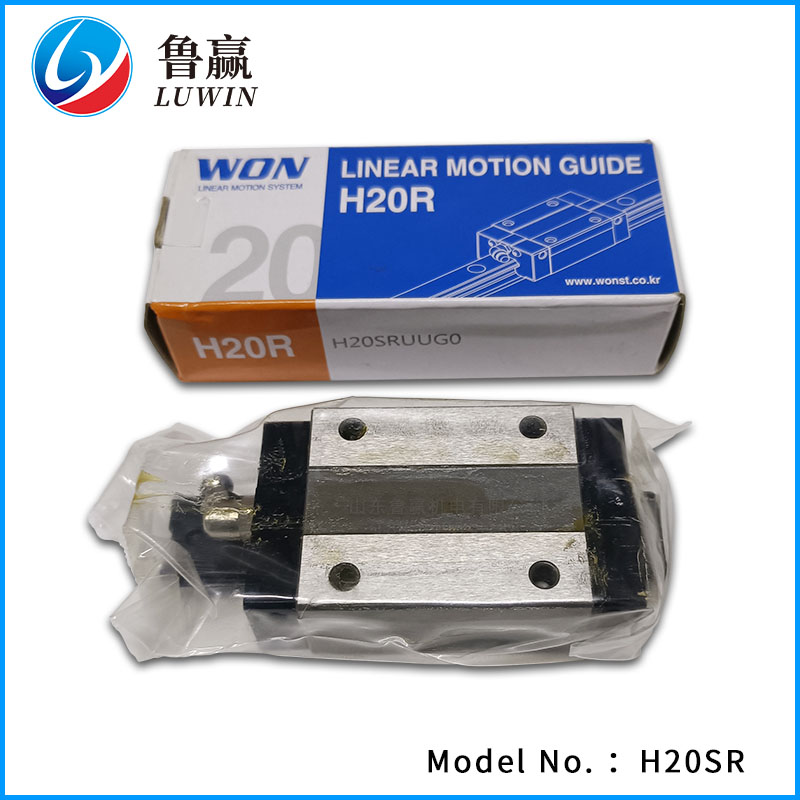

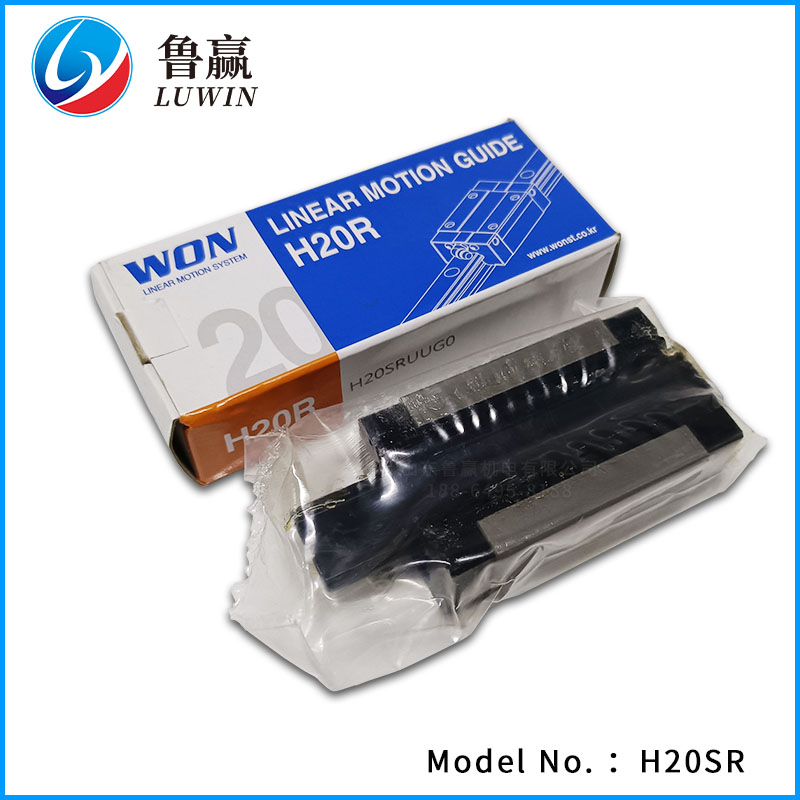

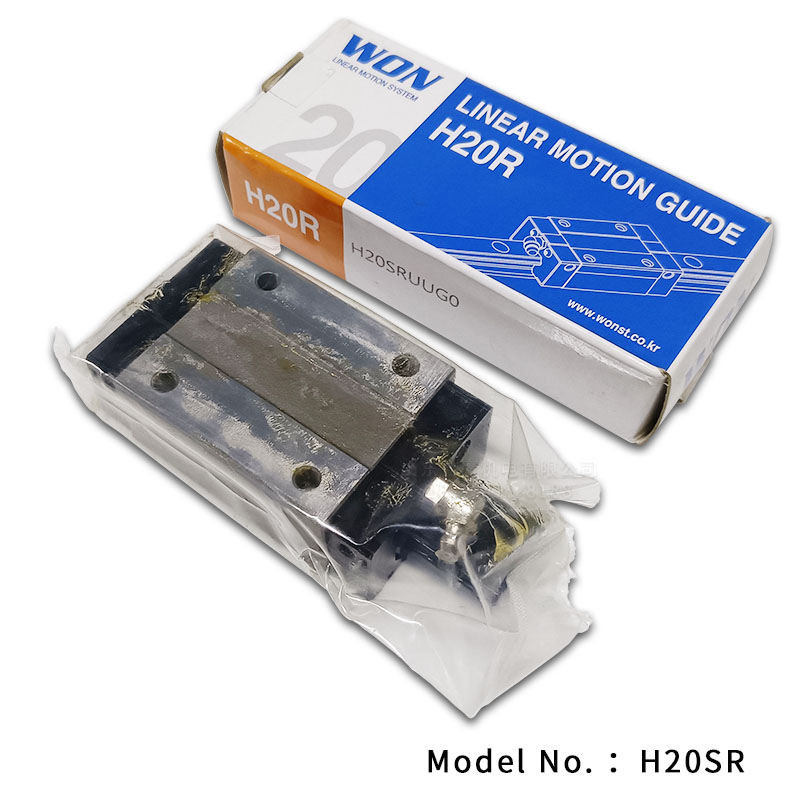

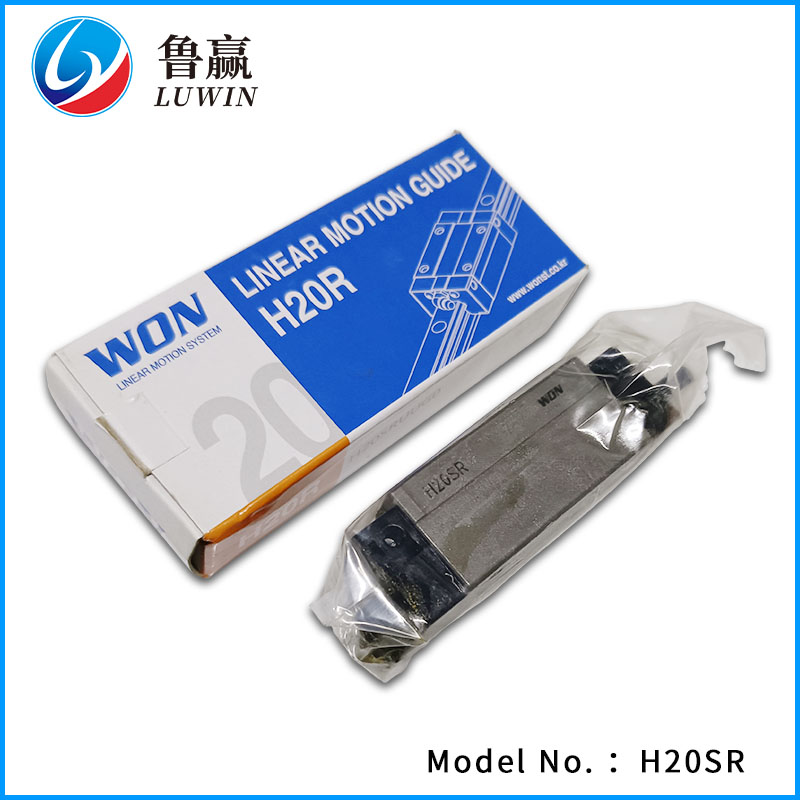

| H20SR | 30 | 44 | 72.7 | 32 | 36 | M5×6 | 53.1 | 8 | 7.5 | 12 | B-M6F | 6 | |
| H20SRL | 30 | 44 | 88.6 | 32 | 36 | M5×6 | 69 | 8 | 7.5 | 12 | B-M6F | 6 | |
| H25SR | 40 | 48 | 83 | 35 | 35 | M6×8 | 58.3 | 8 | 13 | 12 | B-M6F | 7 | |
| H25SRL | 40 | 48 | 102.9 | 35 | 35 | M6×8 | 78.2 | 8 | 13 | 12 | B-M6F | 7 | |
| H30SR | 45 | 60 | 97.8 | 40 | 40 | M8×10 | 70.8 | 8 | 10.3 | 12 | B-M6F | 7.5 | |
| H30SRL | 45 | 60 | 120 | 40 | 60 | M8×10 | 93 | 8 | 10.3 | 12 | B-M6F | 7.5 | |
| H35SR | 55 | 70 | 110 | 50 | 50 | M8×12 | 80.8 | 10 | 15 | 12 | B-M6F | 9 | |
| H35SRL | 55 | 70 | 135.4 | 50 | 72 | M8×12 | 106.2 | 10 | 15 | 12 | B-M6F | 9 | |
| H45SR | 70 | 86 | 139 | 60 | 60 | M10×17 | 101.9 | 15 | 20 | 16 | B-PT1/8 | 10 | |
| H45SRL | 70 | 86 | 170.8 | 60 | 80 | M10×17 | 133.7 | 15 | 20 | 16 | B-PT1/8 | 10 | |
| H55SR | 80 | 100 | 163 | 75 | 75 | M12×18 | 117.5 | 18 | 21 | 16 | B-PT1/8 | 13 | |
| H55SRL | 80 | 100 | 201.1 | 75 | 95 | M12×18 | 155.6 | 18 | 21 | 16 | B-PT1/8 | 13 | |
| 公称 型号 |
LM 滑轨尺寸 | 基本 额定负载 |
允许静力矩 kM·m | 重量 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 宽 W1 ±0.05 |
W2 | 高 H1 |
值 G |
孔距 P |
d1×d2×h | C kN |
Co kN |
Mp | My | Mr | LM 滑块 kg |
LM 滑轨 kg/m |
||||
| 单滑块 | 双滑块 | 单滑块 | 双滑块 | 单滑块 | ||||||||||||
| H15SR | 15 | 9.5 | 13 | 20 | 60 | 4.5×7.5×5.3 | 9.9 | 16.2 | 0.115 | 0.552 | 0.115 | 0.552 | 0.129 | 0.18 | 1.3 | |
| H15SRL | 15 | 9.5 | 13 | 20 | 60 | 4.5×7.5×5.3 | 11.2 | 19.3 | 0.165 | 0.769 | 0.165 | 0.769 | 0.154 | 0.23 | 1.3 | |
| H20SR | 20 | 21.5 | 16.5 | 20 | 60 | 6×9.5×8.5 | 14.9 | 23.9 | 0.221 | 1.049 | 0.221 | 1.049 | 0.221 | 0.31 | 2.2 | |
| H20SRL | 20 | 12 | 16.5 | 20 | 60 | 6×9.5×8.5 | 20.7 | 29.3 | 0.354 | 1.617 | 0.354 | 1.617 | 0.308 | 0.41 | 2.2 | |
| H25SR | 23 | 12.5 | 20 | 20 | 60 | 7×11×9 | 25.4 | 31.0 | 0.316 | 1.532 | 0.316 | 1.32 | 0.373 | 0.53 | 3.0 | |
| H25SRL | 23 | 12.5 | 20 | 20 | 60 | 7×11×9 | 31.1 | 41.5 | 0.567 | 2.627 | 0.567 | 2.627 | 0.500 | 0.71 | 3.0 | |
| H30SR | 28 | 16 | 26 | 20 | 80 | 9×14×12 | 43.8 | 52.9 | 0.660 | 3.139 | 0.660 | 3.139 | 0.768 | 0.9 | 4.85 | |
| H30SRL | 28 | 16 | 26 | 20 | 80 | 9×14×12 | 53.0 | 69.5 | 1.135 | 5.197 | 1.135 | 5.197 | 1.007 | 1.1 | 4.85 | |
| H35SR | 34 | 18 | 29 | 20 | 80 | 9×14×12 | 58.3 | 69.2 | 0.985 | 4.649 | 0.985 | 4.649 | 1.204 | 1.5 | 6.58 | |
| H35SRL | 34 | 18 | 29 | 20 | 80 | 9×14×12 | 70.5 | 90.8 | 1.696 | 7.713 | 1.696 | 7.713 | 1.580 | 2.01 | 6.58 | |
| H45SR | 45 | 20.5 | 38 | 22.5 | 105 | 14×20×17 | 93.7 | 107.9 | 1.945 | 9.194 | 1.945 | 9.194 | 2.110 | 2.89 | 11.03 | |
| H45SRL | 45 | 20.5 | 38 | 22.5 | 105 | 14×20×17 | 113.4 | 141.7 | 3.349 | 15.253 | 3.349 | 15.253 | 2.770 | 3.74 | 11.03 | |
| H55SR | 53 | 23.5 | 44 | 30 | 120 | 16×23×20 | 134.5 | 149.4 | 3.102 | 14.812 | 3.102 | 14.812 | 3.495 | 4.28 | 15.26 | |
| H55SRL | 53 | 23.5 | 44 | 30 | 120 | 16×23×20 | 163.8 | 197.9 | 5.444 | 24.961 | 5.444 | 24.961 | 4.632 | 5.59 | 15.26 | |
